Formula 1 Transient Dynamometer

Mechanical design of Formula 1 transient test bed including:-

  • Concept layout - "flexible" design utilising car or test bed gearbox
  • Engine mounting - engine, bell-housing, exhaust system, auxiliaries
  • Driveline design including torsional & lateral critical analysis - quillshafts, couplings, bearing systems
  • Engine oil conditioning
  • Engine water cooling system
  • Test bed oil lubrication systems
  • Gearbox integration and design analysis
  • Combustion air system integration
  • Test bed exhaust system design
  • Integration of torque measurement systems - low / high speed

Photo courtesy of Torquemeters Ltd

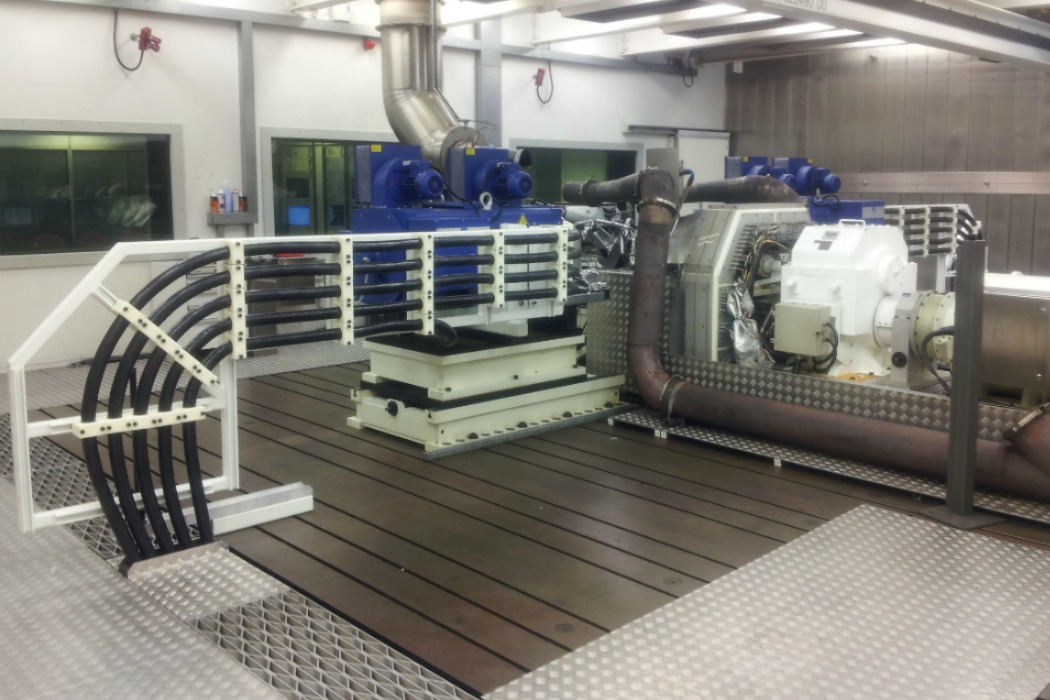

Formula 1 Transient Dynamometer Upgrade

Upgrade of existing Formula 1 transient test bed including:-

  • Integration of new permanent magnet wheel motors
  • Precision sliding motor bases with 2 axis adjustment
  • Interface design for torque measuring flanges
  • Specification of variable speed drive system
  • Design of cable management system with free movement capability  in 2 axes
  • Complete installation and commissioning
